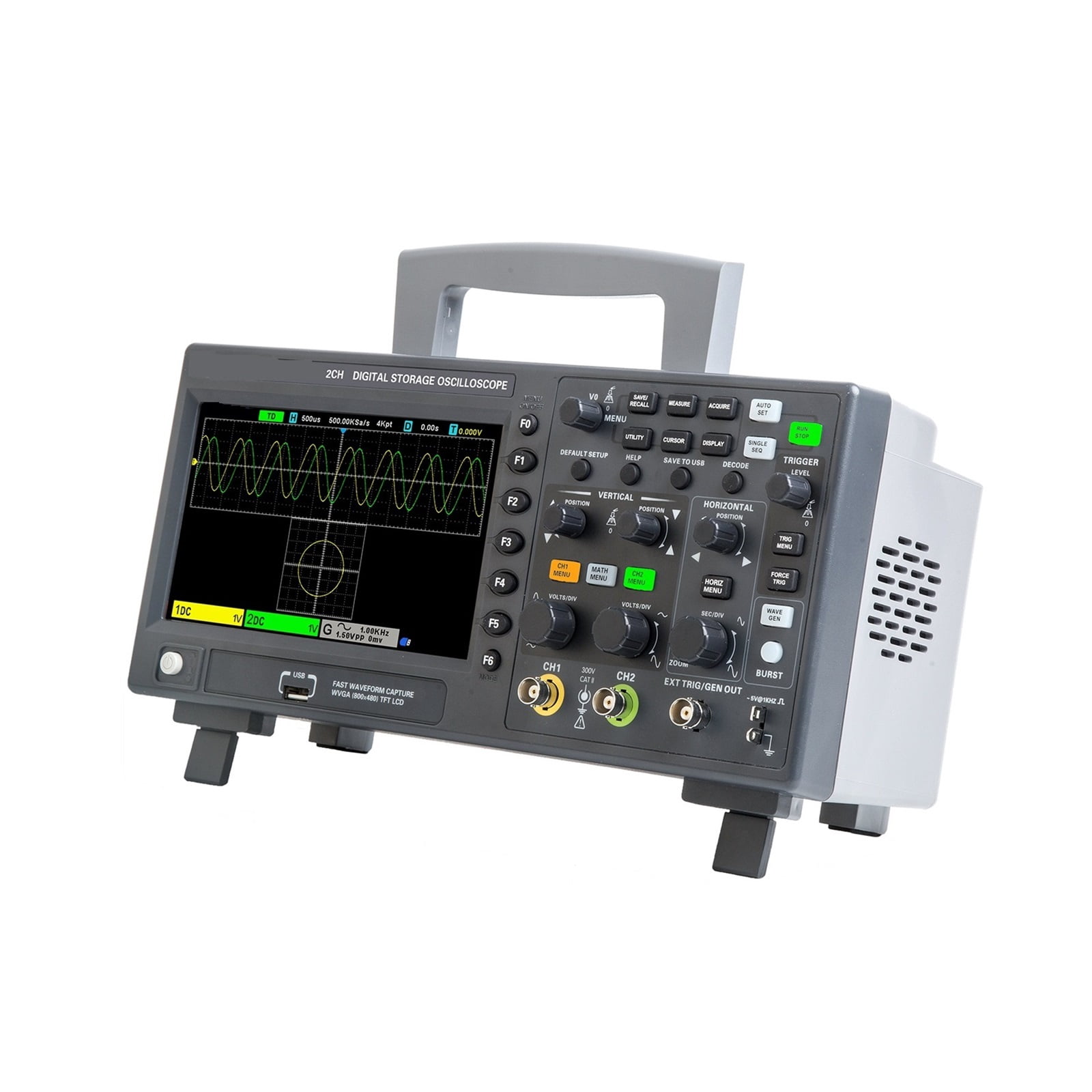

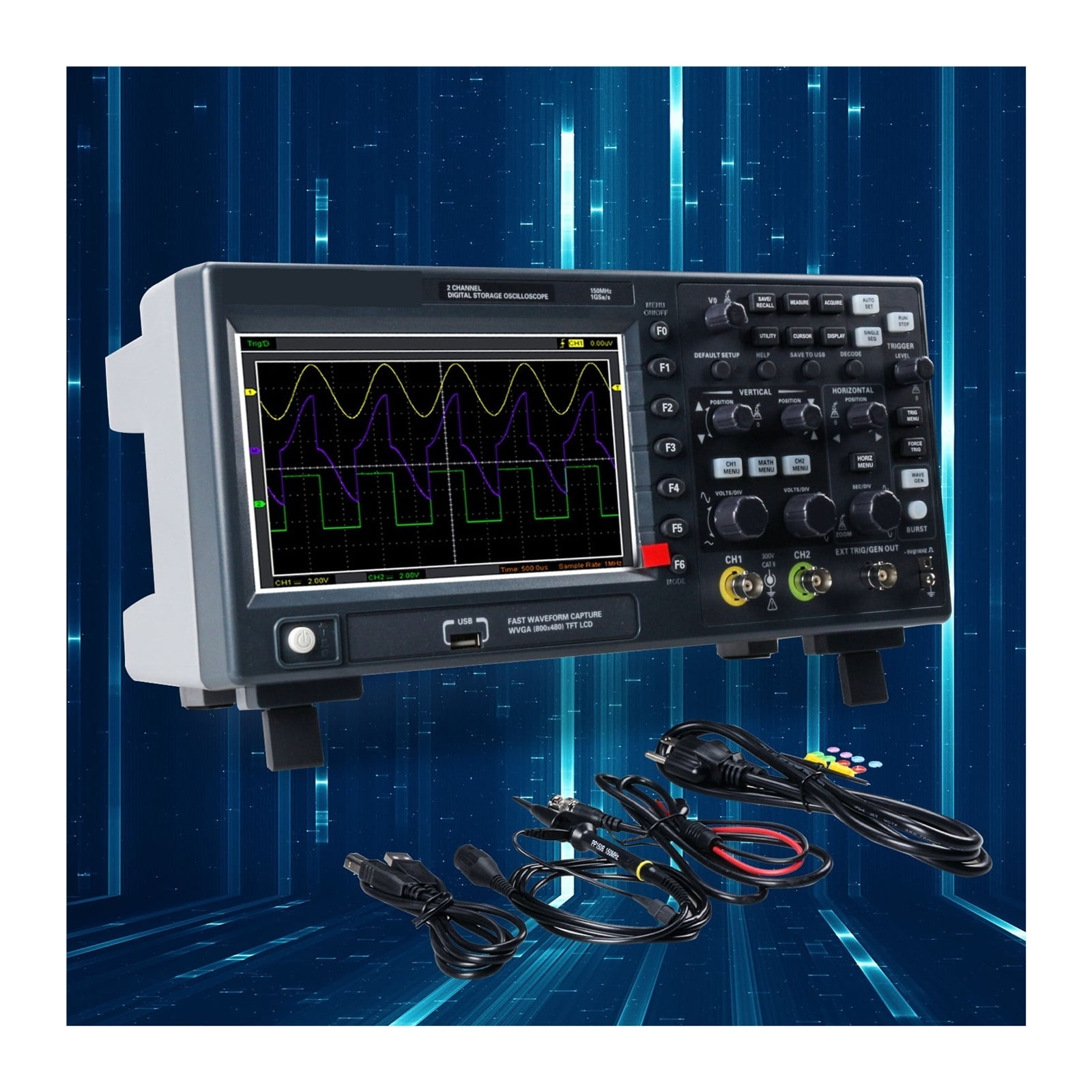

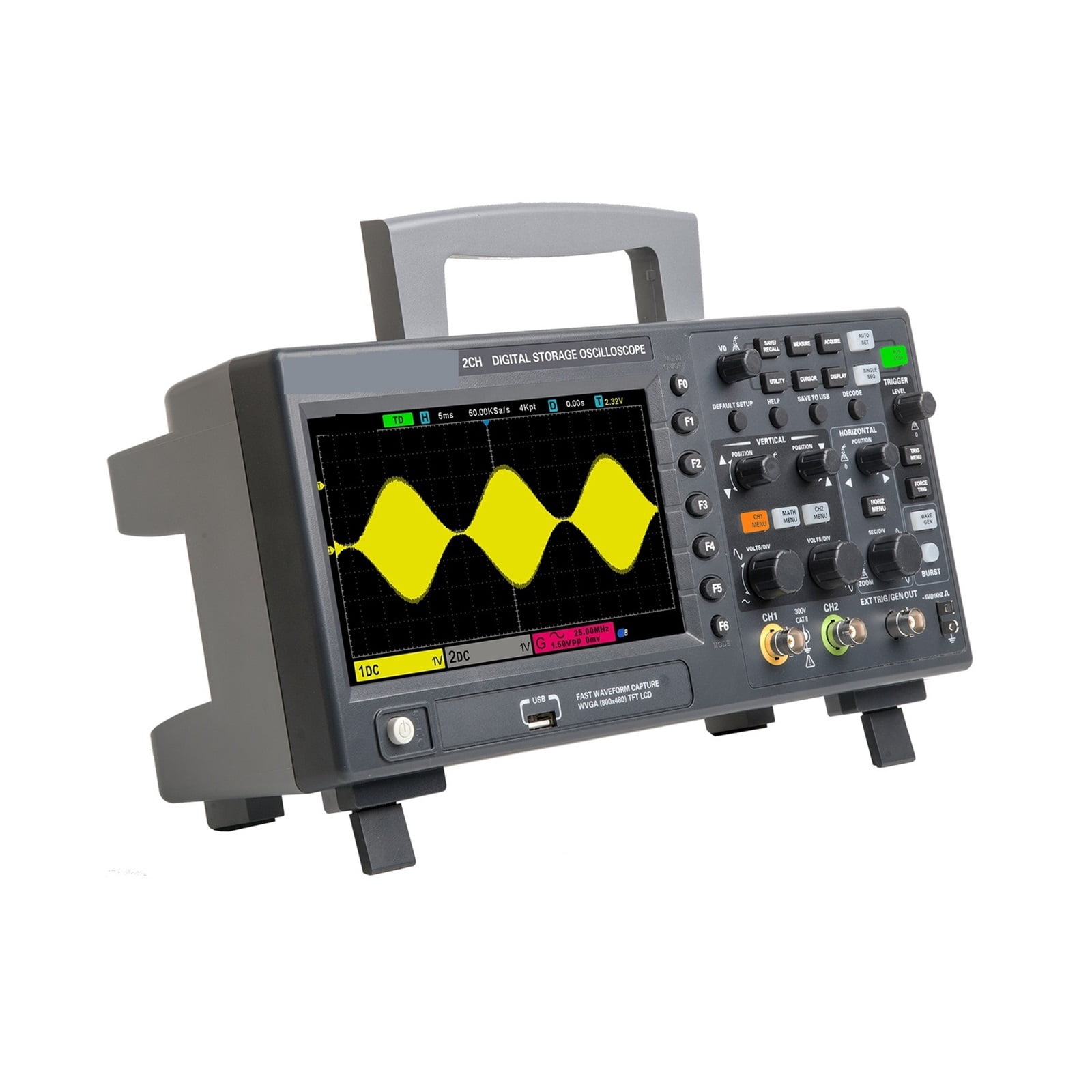

Signal Generation Oscilloscope Dual-Channel Digital Storage Oscilloscope 100M 150M 1GS/s ,Professional Designed

<p>Feature:</p><p>6) Built-in 1 CH5MHz waveform generator;</p><p>7) Vertical resolution :8bit;</p><p>8) Trigger:Edge,Pulse width,Video,Slope,Overtime,Window,Pattern,Interval,Delay,UART,LIN,CAN,SPI,IIC;</p><p>9) CAN decode and protocol analysis:RS232/UART,I2C,SPI,CAN,LIN</p><p>10) Can save as multiple data formats, such as setting, waveform, referance waveform, CSV, picture;</p><p>11)5 bits digital voltage meter and 6 bits hardware frequency indicator function;</p><p>12) 32 kinds of auto measurements with statistics, real-time statistics of maxmum, minimum, standrad deviation and etc.;</p><p>13) 2 sets of digital voltmeter;</p><p>14) Support threshold testing, free measurements within the screen;</p><p>15) Abundant SCPIremote command control;</p><p>16) Many external interface:USB Host/Device.</p><p></p><p>Model</p><p>1CH 25MHz waveform generator, support arbitrary waveform burst output, support modulation waveform output</p><p>32 kinds of auto measurements with statistics</p><p>Can save 10 sets of referance waveform, CSV waveform and setting. USB one-k screenshot</p><p>2 sets of DVM,5 bits digital voltage meter and 6 bits hardware frequency indicator function</p><p>Serial bus trigger and decode, with protocol monitoring function</p><p>8M memory depth, reduce waveform distortion and restore real waveform</p><p>PASS/FAIL</p><p>Mathematical operation and FFT</p><p>X-Y format and display in dual windows</p><p></p><p>signal generation oscilloscope, Oscilloscopes, Electronic Measuring Instruments, Measurement &amp; Analysis Instruments</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• 1) 2 channels, both are respectively controlled by independent knobes;
• 2)100 MHZ, 150MHZanalog channel bandwidth;
• 3)1 GSa/s real-time sample rate;
• 4) 8Mmemory depth;
• 5) Vertical range2mV/div ~ 10V/div;
