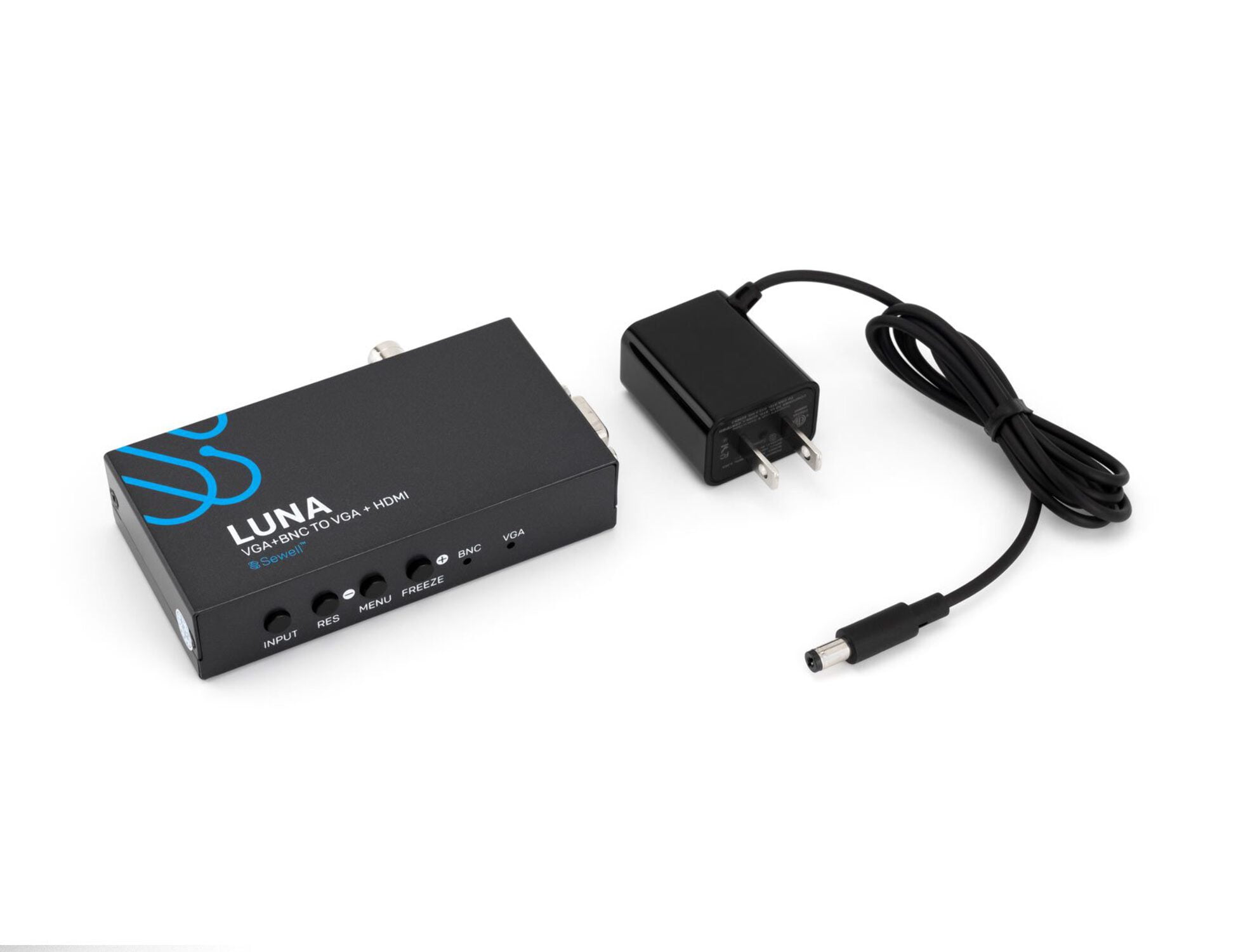

Sewell Luna BNC to VGA + HDMI Converter

<div><p>The Luna outputs to either VGA or HDMI. It allows users to convert a BNC video signal into a VGA, DVI, or HDMI. This makes it possible to use a standard VGA/SVGA computer monitor or an HDMI/DVI ready computer monitor to view a BNC video signal.</p><p></p><p>The Luna is the only BNC converter that will work with VGA, DVI, and HDMI allowing it to be used with virtually any computer monitor. This is the ideal solution for devices outputting BNC video signals such as security cameras, surveillance DVRs, multiplexers, and quad video processors.</p> <div><div> </div></div><p><br></p><p>The Luna also features a "VGA pass-through" which makes it easy to switch between BNC and VGA sources without having to swap cables.(note: the VGA pass-through does <b>NOT</b> convert a VGA signal to HDMI, it is only "VGA to VGA pass-through").</p><p>The Luna can also resize the BNC signal to 1920x1080 so you can view your security footage on an HD display.</p>SpecificationsMfg. Part Number<ul><li>SW-29297-PRO</li></ul>Brand<ul><li>Sewell</li></ul>Features<ul><li><b>Please Note:</b> The Luna converts a BNC signal to VGA or HDMI, though it does not convert a VGA signal to HDMI</li><li>No drivers required, Plug and Play</li><li>Provides advanced signal processing with great precision, colors, resolutions</li><li>Supports PAL, NTSC3.58, NTSC4.43, SECAM and standard TV format inputs</li><li>Supports 480i and 570i input resolution</li><li>HD Cameras are not supported</li><li>Picture freeze function</li><li>VGA/HDMI output resolution from 800X600 to 1920X1080</li><li>Adjustable brightness, contrast, sharpness, and saturation</li><li>Wide range power supply:5V—12V DC adapter</li><li>VGA in to VGA output bypass</li></ul>Technical Specifications<ul><li>Input ports: x1 BNC, x1 VGA x1 3.5mm</li><li>Output ports: x1 VGA, x1 HDMI x1 3.5mm</li><li>Power Supply: 5V/1A DC (US/EU standards, CE/FCC/UL certified)</li><li>Dimensions(cm): 5.4(D)x 10.7(W) x 3.4(H)</li><li>Weight: 0.61 lb.</li><li>Output resolutions:</li><ul><li>800X600@60Hz</li><li>800X600 @ 75Hz</li><li>1024X768 @ 60Hz</li><li>720p/60(1280X720 @ 60Hz)</li><li>1280X1024 @ 60Hz</li><li>1360x768 @ 60Hz</li><li>1440X900 @ 60Hz</li><li>1680X1050 @ 60Hz</li><li>1080p/60(1920X1080 @ 60Hz)</li></ul><li>CVBS input format: PAL, NTSC3.58, NTSC4.43, SECAM</li></ul>Package Contents<ul><li>Power Supply: 5V/1A DC (US/EU standards, CE/FCC/UL certified)</li><li>BNC to VGA/HDMI Convert Box.</li><li>5V DC Power Supply Adaptor.</li><li>Quick reference guide</li></ul></div>

• The Luna outputs to either VGA or HDMI. It allows users to convert a BNC video signal into a VGA, DVI, or HDMI. This makes it possible to use a standard VGA/SVGA computer monitor or an HDMI/DVI-ready computer monitor to view a BNC video signal
• The Luna is the only BNC converter that will work with VGA, DVI, and HDMI allowing it to be used with virtually any computer monitor. This is the ideal solution for devices outputting BNC video signals such as security cameras, surveillance DVRs, multiplexers, and quad video processors
• The Luna also features a "VGA pass-through" which makes it easy to switch between BNC and VGA sources without having to swap cables. (Note: The VGA pass-through does not convert a VGA signal to HDMI, it is only "VGA to VGA pass-through")
• The Luna can also resize the BNC signal to 1920x1080 so you can view your security footage on an HD display
• SpecificationsMfg. Part Number
• SW-29297-PRO
• Brand
• Sewell
• Please Note: The Luna converts a BNC signal to VGA or HDMI, though it does not convert a VGA signal to HDMI
• No drivers required, Plug and Play
• Provides advanced signal processing with great precision, colors, resolutions
• Supports PAL, NTSC3.58, NTSC4.43, SECAM and standard TV format inputs
• Supports 480i and 570i input resolution
• HD Cameras are not supported
• Picture freeze function
• VGA/HDMI output resolution from 800X600 to 1920X1080
• Adjustable brightness, contrast, sharpness, and saturation
• Wide range power supply:5V - 12V DC adapter
• VGA into VGA output bypass

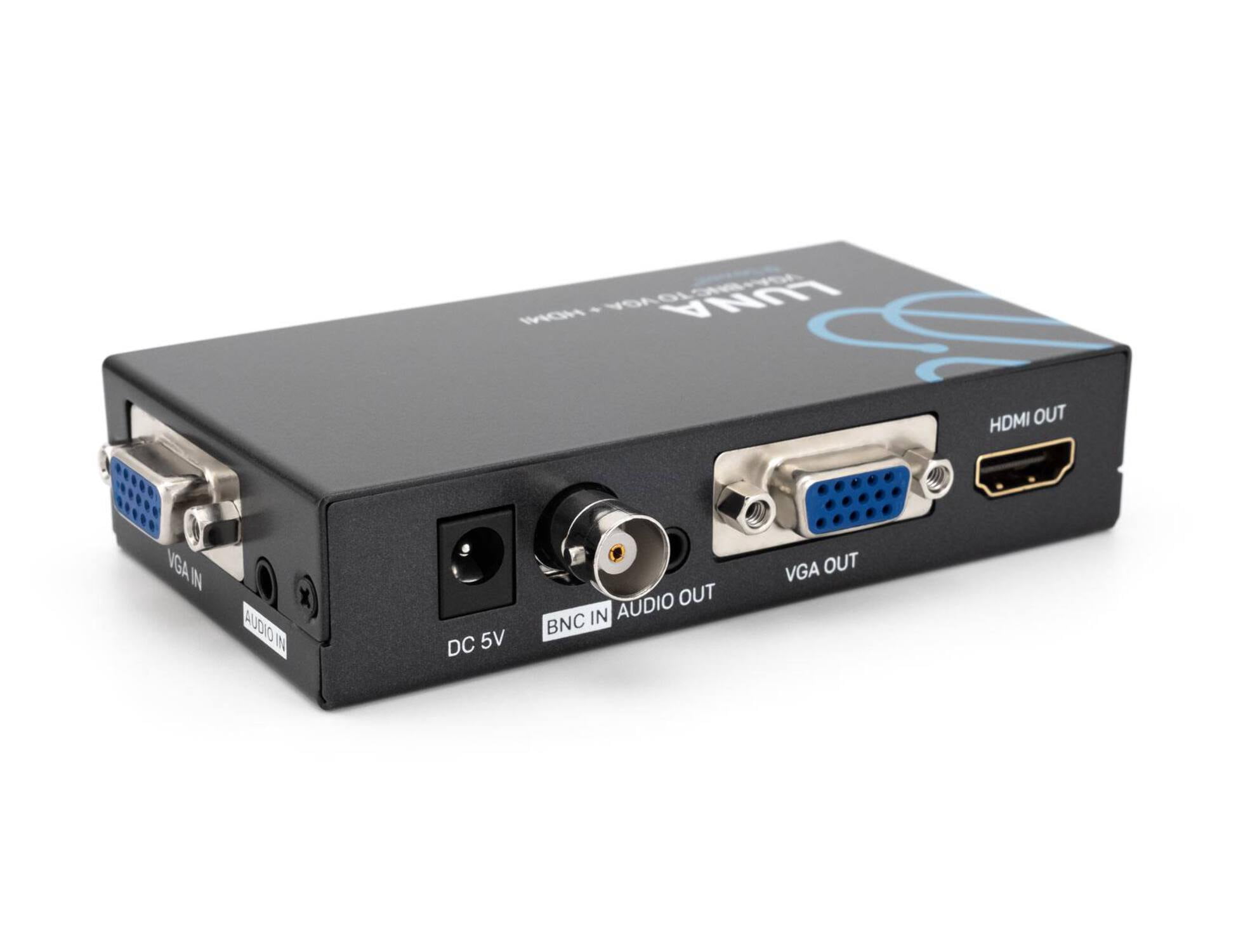

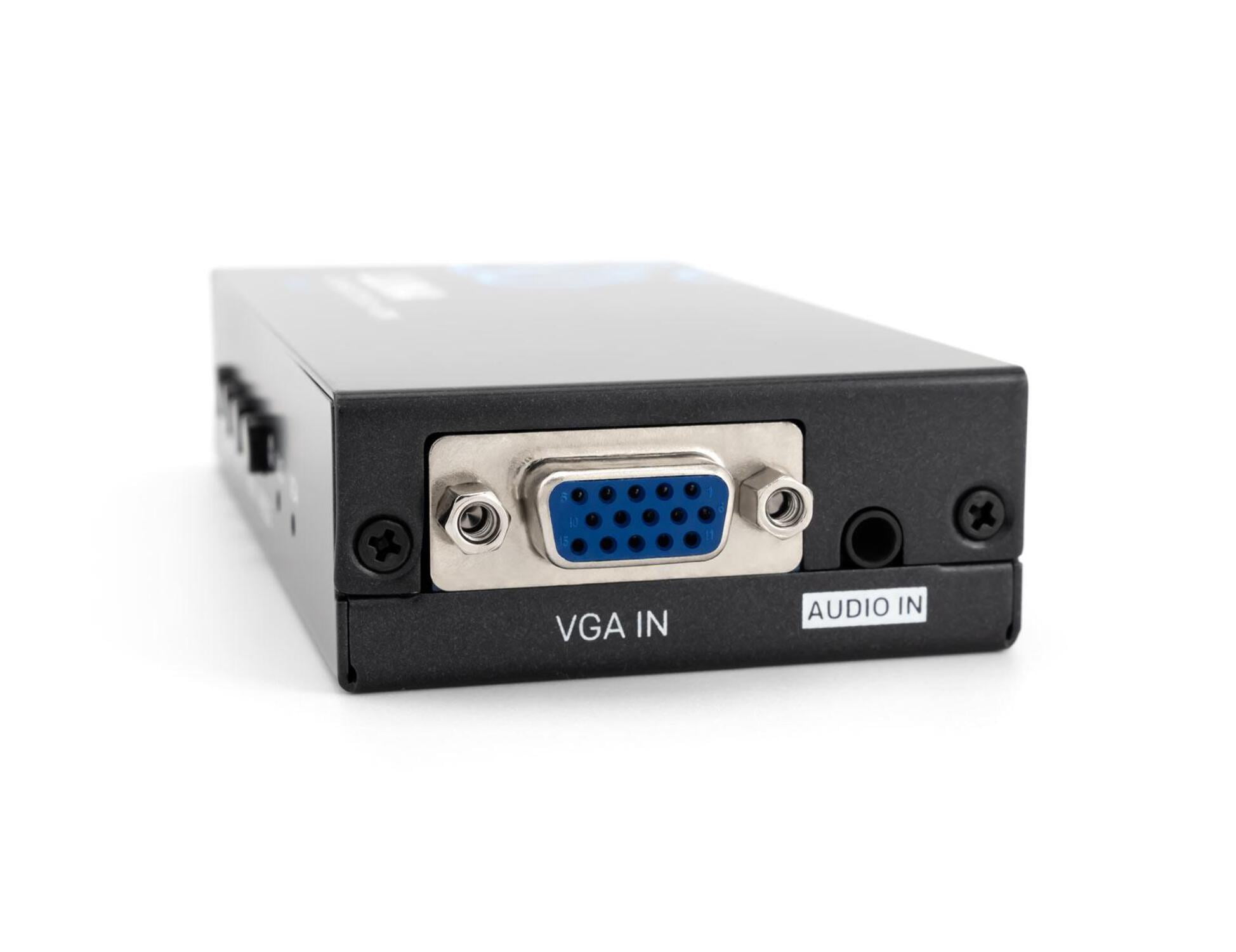

• Input ports: X1 BNC, x1 VGA x1 3.5mm
• Output ports: X1 VGA, x1 HDMI x1 3.5mm
• Power Supply: 5V/1A DC (US/EU standards, CE/FCC/UL certified)
• Dimensions(cm): 5.4(D)x 10.7(W) x 3.4(H)
• Weight: 0.61 lb
• Output resolutions:
• 800X600@60Hz" 800X600@60Hz
• 800X600 @ 75Hz
• 1024X768 @ 60Hz
• 720p/60(1280X720 @ 60Hz)
• 1280X1024 @ 60Hz
• 1360x768 @ 60Hz
• 1440X900 @ 60Hz
• 1680X1050 @ 60Hz
• 1080p/60(1920X1080 @ 60Hz)
• CVBS input format: PAL, NTSC3.58, NTSC4.43, SECAM
• Power Supply: 5V/1A DC (US/EU standards, CE/FCC/UL certified)
• BNC to VGA/HDMI Convert Box
• 5V DC Power Supply Adaptor
• Quick reference guide
