MAPLE ACE HC208, NA208 Insert Bearing 40mm Bore, Spherical OD with Eccentric Locking Collar and Lubrication Hole

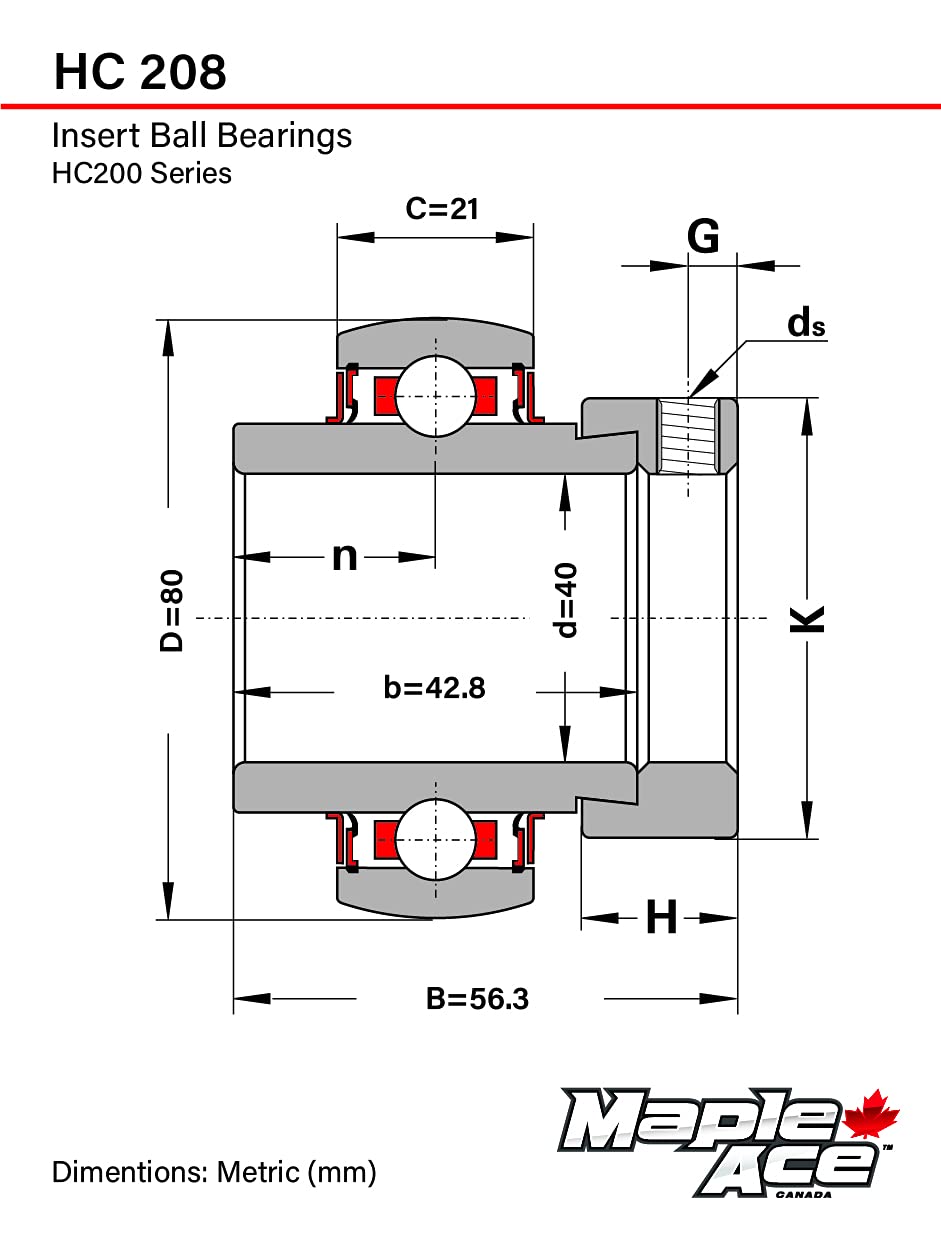

This INSERT BEARING has a Spherical Surface. Triple-Lip Seal: Unmatched protection in highly contaminated environments. Ensures significant bearing lifespan in severe dust, sand, slurry, and water. Bearing is Pre-Lubricated with High-Quality Grease ideal for use in High and Low-temperature settings. Has Groove and Oil Hole to Relubricate. Has Eccentric Locking Collar (Self-Locking Collar). - Specification: Item HC208 G, Series HC200, Outer ring type Spherical, Bore Diameter Metric 40 mm, Bore Diameter Inch 1.5748 in, Outside Diameter Matric 80.00 mm, Outside Diameter Inch 3.1496 in, Width with Collar Matric 56.30 mm, Width with Collar Inch 2.217 in, Width Inner Ring Matric 42.80 mm, Width Inner Ring Inch 1.685 in, Width Outer Ring Matric 21.00 mm, Width Outer Ring Inch 0.827 in, Dynamic Load Rating Cr 30700 N, Static Load Rating Cor 19000 N, Limiting Speed 4800 r/min, Clearance Normal, Closures Shield on both sides, Sealing type L3- Triple Lip Labyrinth Seal, Lubrication Type Grease Shell RL2, Lubrication Temperature -20°C to +160°C, Relubrication feature With, Rolling Element Indicator Ball, Material Gcr15, Locking Type Eccentric Locking Collar, Weight 0.750 KG.

• Exclusively Produced by High Standard Factories
• Ideal for Replacement and OEM Applications
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
• DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
• 100% SATISFACTION GUARANTEED
