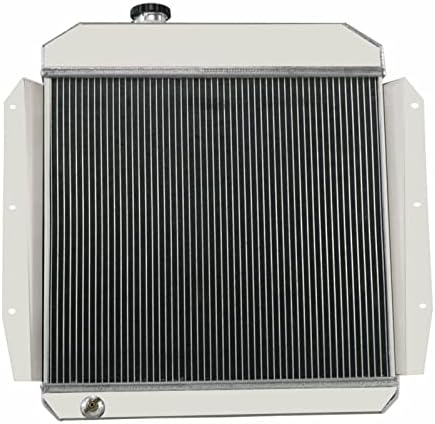

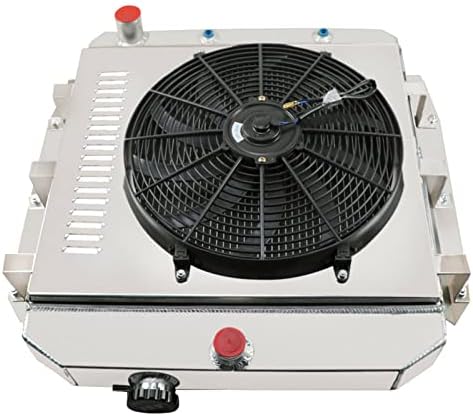

All Aluminum Radiator Fit for 1955-1959 Chevy Truck Radiador for 1955-1958 GMC 100/150 3.8L 4.3L L6/4.6L V8 3 Row Radiators Shroud 1x16" Fans Thermostat Relay Kit

FitmentFor Chevy/GMC Truck Pickup 1955-1959For Chevy 3100 3200 3400 3500 3600 3800 1955-1959For Chevy Truck Pickup Suburban Panel 1955-1959For Chevy/GMC 100/150 Truck Pickup l6/V8 1955-1959Package Include:1 X 3-Row Aluminum Radiator(Includes Radiator Cap)1 X Aluminum Shroud1 X 16" Fans(Includes mounting kits)1 X Thermostat Relay KitRadiator DetailsRow Count: 3 RowCore Size: 19.37"H x 21.57"W x 1.73"TOverall Size: 26.97"L x26.18"W x6.5"HInlet/Outlet: 1.50"/1.77"Transmission oilcooler: IncludeOil Cooler: φ26*205*G1/4(Z)Performance: Up to 30%~45% More CoolingRadiator Crafts:100% welded by TIG, No EpoxyPlacement on Vehicle: Engine CompartmentMounting Style: Bolt-OnFitment Type: Direct ReplacementSurface Finish: Aircraft Grade Raw Aluminum Tank & CorePetcoke Drain: OEM Style Brass Petcoke DrainRadiator Cap: CNC Machined Filler Neck And CapFans SizeMaximum Fan CFM: 2000±200Fan Diameter (in): 16.050 inchesThickness (in): 2.790 inchesNumber of Blades: 10 bladesMaximum Fan RPM: 2,250 rpmBlade Material: PlasticAmp Draw: 12.70 ampsIncludes the Mounting Tabs for an Easy Zip Tie InstallationRelay Kit Instructions:RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.Thermostat Relay Kit:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.Probe typically threads into radiator, water outlet or manifold.Part NumberManufacturer Part Number: 5559,SBR5559,CC5559,EC5559,DREC5559.MC5559

• Core Size: 19.37"H x 21.57"W x 1.73"T; Overall Size: 26.97"L x26.18"W x6.5"H; Inlet/Outlet: 1.50"/1.77"
• High Performance. Transmission oilcooler: Include; Oil Cooler: φ26*205*G1/4(Z); Up to 30%~45% More Cooling
• Lightweight and Durable. Full aviation-aluminum craftsmanship, 100% welded by TIG
• Easy to Install. Meticulously built to superior OE standards for a precise fit, direct bolt-on replacement
• Crafted by our professional team using the highest-grade materials for exceptional longevity.
